Single-phase control transformer (IP20)

Single-phase control, safety and isolation transformer designed to supply control, manoeuvring and signalling elements in machine and process control panels.

The windings are completely protected against shocks, dirt, pollution and humidity. Prepared for installation in adverse environments.

Request a quote

Features

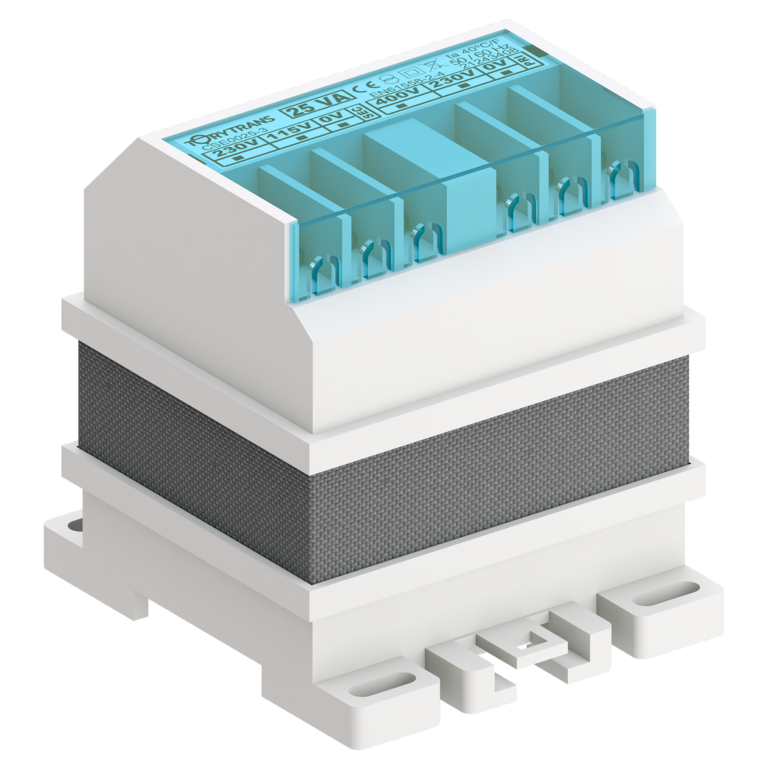

Self-extinguishing technical polyamide enclosure v0, halogen and phosphor free (from 1000VA to 1600VA).
Screw connection and pre-inserted pressure washer.
Selection of primary voltage (between 2000 and 5000VA) and secondary voltage (between 160 and 5000VA) by means of built-in jumpers.

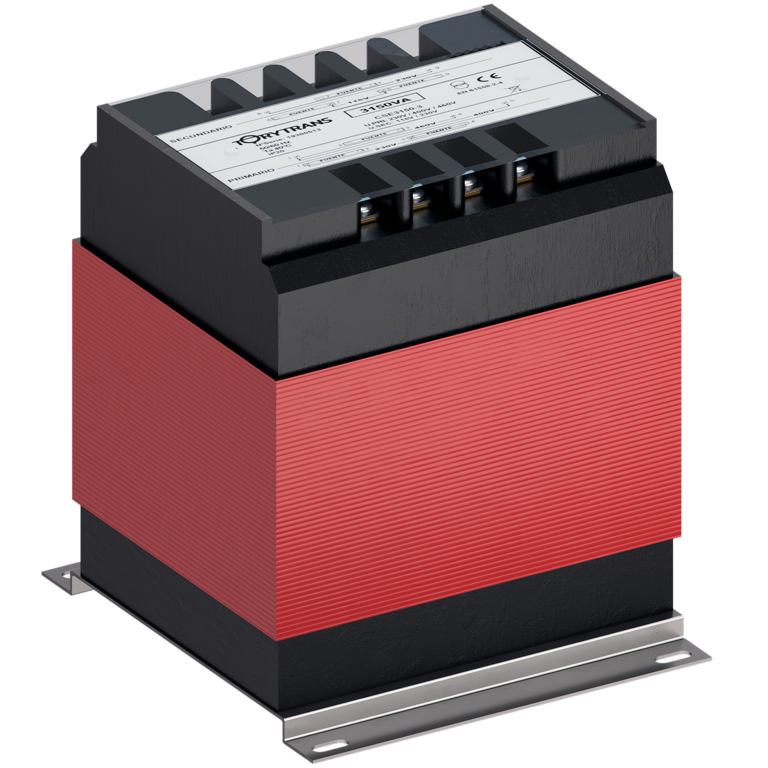

Resin encapsulated enclosure with polycarbonate terminal covers. Suitable for vibrating, humid and corrosive environments (from 2000VA to 5000VA).
Protects the user from access to hazardous contact parts of the winding.

Specifications

Power (VA)	25 ÷ 5000 VA
PRI Voltage (V)	230 - 240 V (Potencias 25 ÷ 1600 VA) 230 - 240 - 600 V (Potencias 2000 ÷ 5000 VA)
SEC Voltage (V)	12 - 24 V 24 - 48 V 115 - 230 V
Frequency	50/60 Hz
Ambient Temperature	40 ºC
Thermic Class	F (155 ºC)
PI	IP20
Electric Shock Protection	Clase II (Potencias 25 ÷ 1600 VA) Clase I (Potencias 2000 ÷ 5000 VA)
Test Voltage	4kV
Regulations	IEC/UNE-EN 61558-1 IEC/UNE-EN 61558-2-2 Tensión SEC < 50 V: IEC/UNE-EN 61558-2-6 Tensión SEC > 50 V: IEC/UNE-EN 61558-2-4

Quality Seals

Marcado CE

UK-CA

Uses

Intended for supplying power to control, manoeuvring and signalling elements in electrical panels of machines, equipment and processes.

Applications requiring reduced or increased voltages to provide electrical isolation for security, artificial vision, lighting, audio and video systems.

Product Versions

References	POWER (VA)		INTENSITY - SECONDARY (A)						INTENSITY - PRIMARY (A)
References	Nominal	Snapshot	12V	24V	24V.1	48V	115V	230V	230V	400V	460V
CSE0025-1	25	65	2.083	1.042	-	-	-	-	-	-	-	Show details
CSE0025-1	25	65	-	-	-	-	-	-	0.109	0.062	-	Show details
CSE0040-1	40	80	3.333	1.667	-	-	-	-	-	-	-	Show details
CSE0040-1	40	80	-	-	-	-	-	-	0.174	0.1	-	Show details
CSE0063-1	63	135	5.25	2.625	-	-	-	-	-	-	-	Show details
CSE0063-1	63	135	-	-	-	-	-	-	0.274	0.158	-	Show details
CSE0100-1	100	210	8.333	4.167	-	-	-	-	-	-	-	Show details
CSE0100-1	100	210	-	-	-	-	-	-	0.435	0.25	-	Show details
CSE0160-1	160	370	13.333	6.667	-	-	-	-	-	-	-	Show details
CSE0160-1	160	370	-	-	-	-	-	-	0.696	0.4	-	Show details
CSE0200-1	200	460	16.667	8.333	-	-	-	-	-	-	-	Show details
CSE0200-1	200	460	-	-	-	-	-	-	0.87	0.5	-	Show details
CSE0250-1	250	650	20.833	10.417	-	-	-	-	-	-	-	Show details
CSE0250-1	250	650	-	-	-	-	-	-	1.087	0.625	-	Show details
CSE0315-1	315	875	26.25	13.125	-	-	-	-	-	-	-	Show details
CSE0315-1	315	875	-	-	-	-	-	-	1.37	0.787	-	Show details
CSE0400-1	400	1250	33.333	16.667	-	-	-	-	-	-	-	Show details
CSE0400-1	400	1250	-	-	-	-	-	-	1.739	1	-	Show details
CSE0500-1	500	1400	41.667	20.833	-	-	-	-	-	-	-	Show details
CSE0500-1	500	1400	-	-	-	-	-	-	2.174	1.25	-	Show details
CSE0630-1	630	1800	52.5	26.25	-	-	-	-	-	-	-	Show details
CSE0630-1	630	1800	-	-	-	-	-	-	2.739	1.575	-	Show details
CSE1000-1	1000	3200	83.333	41.667	-	-	-	-	-	-	-	Show details
CSE1000-1	1000	3200	-	-	-	-	-	-	4.348	2.5	-	Show details
CSE0025-2	25	65	-	-	1.042	0.521	-	-	-	-	-	Show details
CSE0025-2	25	65	-	-	-	-	-	-	0.109	0.062	-	Show details
CSE0040-2	40	80	-	-	1.667	0.833	-	-	-	-	-	Show details
CSE0040-2	40	80	-	-	-	-	-	-	0.174	0.1	-	Show details
CSE0063-2	63	135	-	-	2.625	1.312	-	-	-	-	-	Show details
CSE0063-2	63	135	-	-	-	-	-	-	0.274	0.158	-	Show details
CSE0100-2	100	210	-	-	4.167	2.083	-	-	-	-	-	Show details
CSE0100-2	100	210	-	-	-	-	-	-	0.435	0.25	-	Show details
CSE0160-2	160	370	-	-	6.667	3.333	-	-	-	-	-	Show details
CSE0160-2	160	370	-	-	-	-	-	-	0.696	0.4	-	Show details
CSE0200-2	200	460	-	-	8.333	4.167	-	-	-	-	-	Show details
CSE0200-2	200	460	-	-	-	-	-	-	0.87	0.5	-	Show details
CSE0250-2	250	650	-	-	10.417	5.208	-	-	-	-	-	Show details
CSE0250-2	250	650	-	-	-	-	-	-	1.087	0.625	-	Show details
CSE0315-2	315	875	-	-	13.125	6.562	-	-	-	-	-	Show details
CSE0315-2	315	875	-	-	-	-	-	-	1.37	0.787	-	Show details
CSE0400-2	400	1250	-	-	16.667	8.333	-	-	-	-	-	Show details
CSE0400-2	400	1250	-	-	-	-	-	-	1.739	1	-	Show details
CSE0500-2	500	1400	-	-	20.833	10.417	-	-	-	-	-	Show details
CSE0500-2	500	1400	-	-	-	-	-	-	2.174	1.25	-	Show details
CSE0630-2	630	1800	-	-	26.25	13.125	-	-	-	-	-	Show details
CSE0630-2	630	1800	-	-	-	-	-	-	2.739	1.575	-	Show details
CSE1000-2	1000	3200	-	-	41.667	20.833	-	-	-	-	-	Show details
CSE1000-2	1000	3200	-	-	-	-	-	-	4.348	2.5	-	Show details
CSE1600-2	1600	5350	-	-	66.667	33.333	-	-	-	-	-	Show details
CSE1600-2	1600	5350	-	-	-	-	-	-	6.957	4	-	Show details
CSE2000-2	2000	5600	-	-	83.333	41.667	-	-	-	-	-	Show details
CSE2000-2	2000	5600	-	-	-	-	-	-	8.696	5	4.348	Show details
CSE2500-2	2500	7800	-	-	104.167	52.083	-	-	-	-	-	Show details
CSE2500-2	2500	7800	-	-	-	-	-	-	10.87	6.25	5.435	Show details
CSE0025-3	25	65	-	-	-	-	0.217	0.109	-	-	-	Show details
CSE0025-3	25	65	-	-	-	-	-	-	0.109	0.062	-	Show details
CSE0040-3	40	80	-	-	-	-	0.348	0.174	-	-	-	Show details
CSE0040-3	40	80	-	-	-	-	-	-	0.174	0.1	-	Show details
CSE0063-3	63	135	-	-	-	-	0.548	0.274	-	-	-	Show details
CSE0063-3	63	135	-	-	-	-	-	-	0.274	0.158	-	Show details
CSE0100-3	100	210	-	-	-	-	0.87	0.435	-	-	-	Show details
CSE0100-3	100	210	-	-	-	-	-	-	0.435	0.25	-	Show details
CSE0160-3	160	370	-	-	-	-	1.391	0.696	-	-	-	Show details
CSE0160-3	160	370	-	-	-	-	-	-	0.696	0.4	-	Show details
CSE0200-3	200	460	-	-	-	-	1.739	0.87	-	-	-	Show details
CSE0200-3	200	460	-	-	-	-	-	-	0.87	0.5	-	Show details
CSE0250-3	250	650	-	-	-	-	2.174	1.087	-	-	-	Show details
CSE0250-3	250	650	-	-	-	-	-	-	1.087	0.625	-	Show details
CSE0315-3	315	875	-	-	-	-	2.739	1.37	-	-	-	Show details
CSE0315-3	315	875	-	-	-	-	-	-	1.37	0.787	-	Show details
CSE0400-3	400	1250	-	-	-	-	3.478	1.739	-	-	-	Show details
CSE0400-3	400	1250	-	-	-	-	-	-	1.739	1	-	Show details
CSE0500-3	500	1400	-	-	-	-	4.348	2.174	-	-	-	Show details
CSE0500-3	500	1400	-	-	-	-	-	-	2.174	1.25	-	Show details
CSE0630-3	630	1800	-	-	-	-	5.478	2.739	-	-	-	Show details
CSE0630-3	630	1800	-	-	-	-	-	-	2.739	1.575	-	Show details
CSE1000-3	1000	3200	-	-	-	-	8.696	4.348	-	-	-	Show details
CSE1000-3	1000	3200	-	-	-	-	-	-	4.348	2.5	-	Show details
CSE1600-3	1600	5350	-	-	-	-	13.913	6.957	-	-	-	Show details
CSE1600-3	1600	5350	-	-	-	-	-	-	6.957	4	-	Show details
CSE2000-3	2000	5600	-	-	-	-	17.391	8.696	-	-	-	Show details
CSE2000-3	2000	5600	-	-	-	-	-	-	8.696	5	4.348	Show details
CSE2500-3	2500	7800	-	-	-	-	21.739	10.87	-	-	-	Show details
CSE2500-3	2500	7800	-	-	-	-	-	-	10.87	6.25	5.435	Show details
CSE3150-3	3150	10100	-	-	-	-	27.391	13.696	-	-	-	Show details
CSE3150-3	3150	10100	-	-	-	-	-	-	13.696	7.875	6.848	Show details
CSE4000-3	4000	12500	-	-	-	-	34.783	17.391	-	-	-	Show details
CSE4000-3	4000	12500	-	-	-	-	-	-	17.391	10	8.696	Show details
CSE5000-3	5000	15000	-	-	-	-	43.478	21.739	-	-	-	Show details
CSE5000-3	5000	15000	-	-	-	-	-	-	21.739	12.5	10.87	Show details

Show more +

Tech sheet complete CSE

* TORYTRANS reserves the right to modify the information in any time and without prior notice. Design, dimensions or weight of the product could be different.
