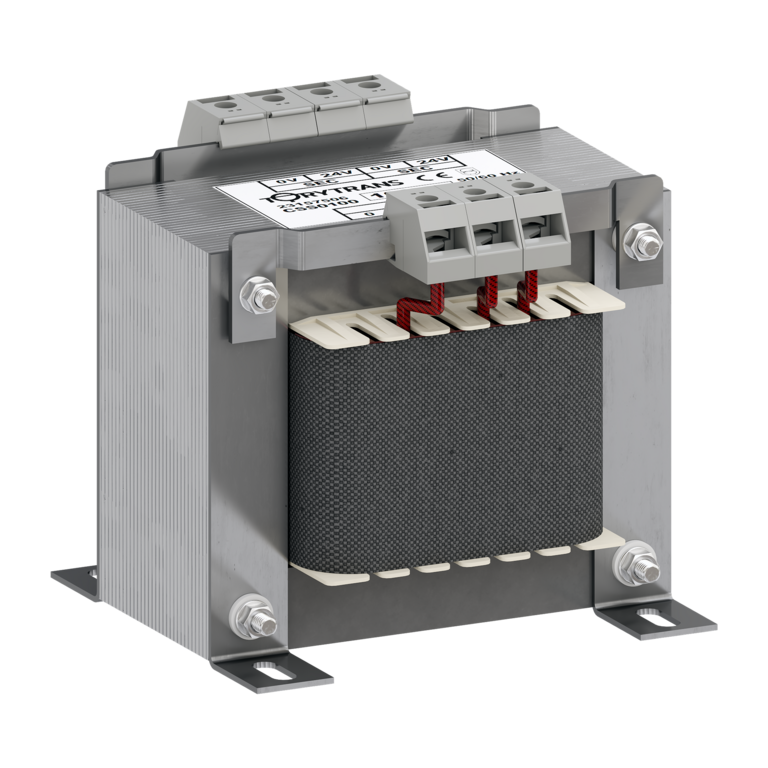

Single-phase control transformer (IP00)

Single-phase transformer IP00 with galvanic isolation between primary and secondary for control, safety and circuit isolation.

Request a quote

Features

Small size and weight for easy installation in control cabinets.
Connection via IP20 terminals to protect against dangerous direct contact.
Robust and complete varnishing to protect against humidity, dust and corrosion.
Versatile thanks to the multitude of primary and secondary voltage sockets.
Optional cURus (UL) marking

Specifications

Power (VA)	25 ÷ 5000 VA
PRI Voltage (V)	230 - 240 V (Potencias 25 ÷ 1600 VA) 230 - 240 - 600 V (Potencias 2000 ÷ 5000 VA)
SEC Voltage (V)	12 - 24 V 24 - 48 V 115 - 230 V
Frequency	50/60 Hz
Ambient Temperature	40 ºC
Thermic Class	F (155 ºC)
PI	IP00
Electric Shock Protection	Clase I
Test Voltage	4kV
Regulations	IEC/UNE-EN 61558-1 IEC/UNE-EN 61558-2-2 Tensión SEC < 50 V: IEC/UNE-EN 61558-2-6 Tensión SEC > 50 V: IEC/UNE-EN 61558-2-4
UL Regulations	UL 5085-1 UL 5085-2 CAN/CSA C22.2 NO.66.1-06 CAN/CSA C22.2 NO.66.2-06

Quality Seals

Marcado CE

Opcional: cRUs

Uses

Intended for supplying power to control, manoeuvring and signalling elements in electrical panels of machines, equipment and processes.
Applications requiring reduced or increased voltages to provide electrical isolation for security, artificial vision, lighting, audio and video systems.

Product Versions

References	POWER (VA)		INTENSITY - SECONDARY (A)						INTENSITY - PRIMARY (A)
References	Nominal	Snapshot	12V	24V	24V.1	48V	115V	230V	230V	400V	460V
CSS0025-1	25	65	2.083	1.042	-	-	-	-	-	-	-	Show details
CSS0025-1	25	65	-	-	-	-	-	-	0.109	0.062	-	Show details
CSS0040-1	40	80	3.333	1.667	-	-	-	-	-	-	-	Show details
CSS0040-1	40	80	-	-	-	-	-	-	0.174	0.1	-	Show details
CSS0063-1	63	135	5.25	2.625	-	-	-	-	-	-	-	Show details
CSS0063-1	63	135	-	-	-	-	-	-	0.274	0.158	-	Show details
CSS0100-1	100	210	8.333	4.167	-	-	-	-	-	-	-	Show details
CSS0100-1	100	210	-	-	-	-	-	-	0.435	0.25	-	Show details
CSS0160-1	160	370	13.333	6.667	-	-	-	-	-	-	-	Show details
CSS0160-1	160	370	-	-	-	-	-	-	0.696	0.4	-	Show details
CSS0200-1	200	460	16.667	8.333	-	-	-	-	-	-	-	Show details
CSS0200-1	200	460	-	-	-	-	-	-	0.87	0.5	-	Show details
CSS0250-1	250	650	20.833	10.417	-	-	-	-	-	-	-	Show details
CSS0250-1	250	650	-	-	-	-	-	-	1.087	0.625	-	Show details
CSS0315-1	315	875	26.25	13.125	-	-	-	-	-	-	-	Show details
CSS0315-1	315	875	-	-	-	-	-	-	1.37	0.787	-	Show details
CSS0400-1	400	1250	33.333	16.667	-	-	-	-	-	-	-	Show details
CSS0400-1	400	1250	-	-	-	-	-	-	1.739	1	-	Show details
CSS0500-1	500	1400	41.667	20.833	-	-	-	-	-	-	-	Show details
CSS0500-1	500	1400	-	-	-	-	-	-	2.174	1.25	-	Show details
CSS0630-1	630	1800	52.5	26.25	-	-	-	-	-	-	-	Show details
CSS0630-1	630	1800	-	-	-	-	-	-	2.739	1.575	-	Show details
CSS0025-2	25	65	-	-	1.042	0.521	-	-	-	-	-	Show details
CSS0025-2	25	65	-	-	-	-	-	-	0.109	0.062	-	Show details
CSS0040-2	40	80	-	-	1.667	0.833	-	-	-	-	-	Show details
CSS0040-2	40	80	-	-	-	-	-	-	0.174	0.1	-	Show details
CSS0063-2	63	135	-	-	2.625	1.312	-	-	-	-	-	Show details
CSS0063-2	63	135	-	-	-	-	-	-	0.274	0.158	-	Show details
CSS0100-2	100	210	-	-	4.167	2.083	-	-	-	-	-	Show details
CSS0100-2	100	210	-	-	-	-	-	-	0.435	0.25	-	Show details
CSS0160-2	160	370	-	-	6.667	3.333	-	-	-	-	-	Show details
CSS0160-2	160	370	-	-	-	-	-	-	0.696	0.4	-	Show details
CSS0200-2	200	460	-	-	8.333	4.167	-	-	-	-	-	Show details
CSS0200-2	200	460	-	-	-	-	-	-	0.87	0.5	-	Show details
CSS0250-2	250	650	-	-	10.417	5.208	-	-	-	-	-	Show details
CSS0250-2	250	650	-	-	-	-	-	-	1.087	0.625	-	Show details
CSS0315-2	315	875	-	-	13.125	6.562	-	-	-	-	-	Show details
CSS0315-2	315	875	-	-	-	-	-	-	1.37	0.787	-	Show details
CSS0400-2	400	1250	-	-	16.667	8.333	-	-	-	-	-	Show details
CSS0400-2	400	1250	-	-	-	-	-	-	1.739	1	-	Show details
CSS0500-2	500	1400	-	-	20.833	10.417	-	-	-	-	-	Show details
CSS0500-2	500	1400	-	-	-	-	-	-	2.174	1.25	-	Show details
CSS0630-2	630	1800	-	-	26.25	13.125	-	-	-	-	-	Show details
CSS0630-2	630	1800	-	-	-	-	-	-	2.739	1.575	-	Show details
CSS1000-2	1000	3200	-	-	41.667	20.833	-	-	-	-	-	Show details
CSS1000-2	1000	3200	-	-	-	-	-	-	4.348	2.5	-	Show details
CSS0025-3	25	65	-	-	-	-	0.217	0.109	-	-	-	Show details
CSS0025-3	25	65	-	-	-	-	-	-	0.109	0.062	-	Show details
CSS0040-3	40	80	-	-	-	-	0.348	0.174	-	-	-	Show details
CSS0040-3	40	80	-	-	-	-	-	-	0.174	0.1	-	Show details
CSS0063-3	63	135	-	-	-	-	0.548	0.274	-	-	-	Show details
CSS0063-3	63	135	-	-	-	-	-	-	0.274	0.158	-	Show details
CSS0100-3	100	210	-	-	-	-	0.87	0.435	-	-	-	Show details
CSS0100-3	100	210	-	-	-	-	-	-	0.435	0.25	-	Show details
CSS0160-3	160	370	-	-	-	-	1.391	0.696	-	-	-	Show details
CSS0160-3	160	370	-	-	-	-	-	-	0.696	0.4	-	Show details
CSS0200-3	200	460	-	-	-	-	1.739	0.87	-	-	-	Show details
CSS0200-3	200	460	-	-	-	-	-	-	0.87	0.5	-	Show details
CSS0250-3	250	650	-	-	-	-	2.174	1.087	-	-	-	Show details
CSS0250-3	250	650	-	-	-	-	-	-	1.087	0.625	-	Show details
CSS0315-3	315	875	-	-	-	-	2.739	1.37	-	-	-	Show details
CSS0315-3	315	875	-	-	-	-	-	-	1.37	0.787	-	Show details
CSS0400-3	400	1250	-	-	-	-	3.478	1.739	-	-	-	Show details
CSS0400-3	400	1250	-	-	-	-	-	-	1.739	1	-	Show details
CSS0500-3	500	1400	-	-	-	-	4.348	2.174	-	-	-	Show details
CSS0500-3	500	1400	-	-	-	-	-	-	2.174	1.25	-	Show details
CSS0630-3	630	1800	-	-	-	-	5.478	2.739	-	-	-	Show details
CSS0630-3	630	1800	-	-	-	-	-	-	2.739	1.575	-	Show details
CSS1000-3	1000	3200	-	-	-	-	8.696	4.348	-	-	-	Show details
CSS1000-3	1000	3200	-	-	-	-	-	-	4.348	2.5	-	Show details
CSS1600-3	1600	5350	-	-	-	-	13.913	6.957	-	-	-	Show details
CSS1600-3	1600	5350	-	-	-	-	-	-	6.957	4	-	Show details
CSS2000-3	2000	5600	-	-	-	-	17.391	8.696	-	-	-	Show details
CSS2000-3	2000	5600	-	-	-	-	-	-	8.696	5	4.348	Show details
CSS2500-3	2500	7800	-	-	-	-	21.739	10.87	-	-	-	Show details
CSS2500-3	2500	7800	-	-	-	-	-	-	10.87	6.25	5.435	Show details
CSS3150-3	3150	10100	-	-	-	-	27.391	13.696	-	-	-	Show details
CSS3150-3	3150	10100	-	-	-	-	-	-	13.696	7.875	6.848	Show details
CSS4000-3	4000	12500	-	-	-	-	34.783	17.391	-	-	-	Show details
CSS4000-3	4000	12500	-	-	-	-	-	-	17.391	10	8.696	Show details
CSS5000-3	5000	15000	-	-	-	-	43.478	21.739	-	-	-	Show details
CSS5000-3	5000	15000	-	-	-	-	-	-	21.739	12.5	10.87	Show details

Show more +

Tech sheet complete CSS
