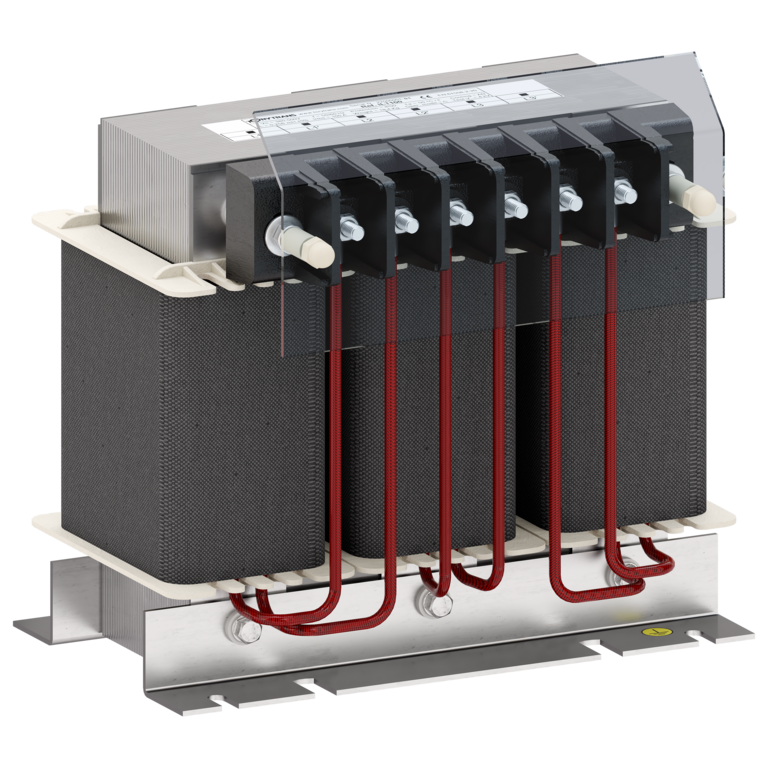

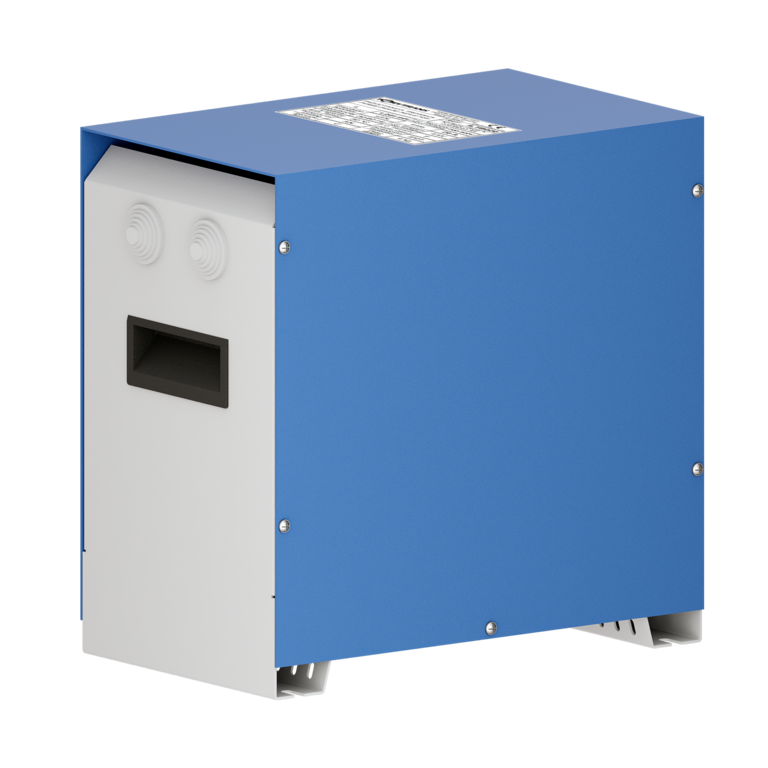

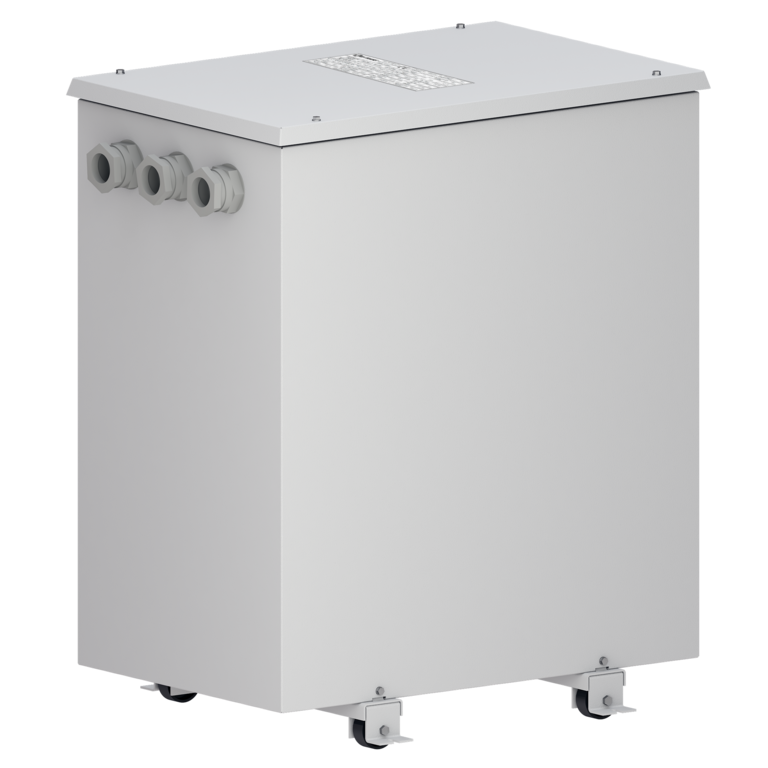

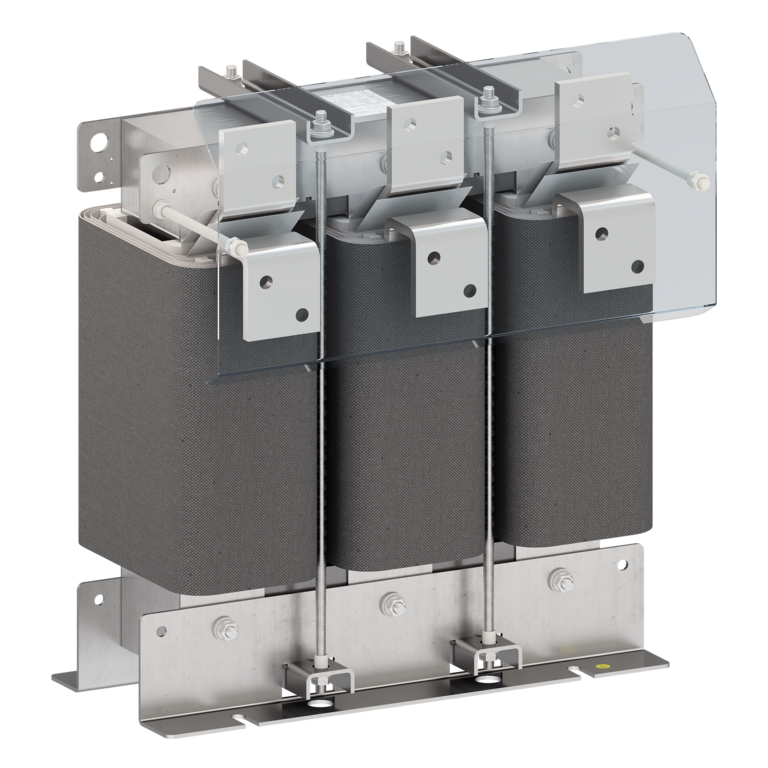

Three-phase line inductance for VDF

Three-phase mains-side filter choke for motor frequency inverters.

Features

Magnetic core made of magnetic sheet with low losses and high permeability.
Vacuum impregnation and oven-drying in epoxy varnish with high binding power to reduce noise and vibrations.
High protection against external agents such as humidity, dust and corrosion.
Connection by IP20 terminals up to ILT/ILTB020, ILTD/ILTDBDx017. The rest incorporates polycarbonate terminal covers to protect against dangerous direct contact.
Optional possibility of cURus marking according to UL.

Specifications

Power (VA)	0.75 ÷ 630 VA
Power (HP)	1 ÷ 855 CV
Rated Current	400 V (380 ÷ 440 V) (Series ILT/ILTB)
Inductance Impedance	3.5% a 400 V, 50 Hz (Series ILT/ILTB)
Frequency	50/60 Hz
Transient overload	1.5 Iₙ 1 min x hora
Thermic Class	H (180 ºC)
Ambient Temperature	50 ºC
PI	IP00
Test Voltage	4kV
Regulations	IEC/UNE-EN 60076-6

Quality Seals

Marcado CE

UK-CA

Opcional: cRUs

Uses

For harmonic attenuation of motor variable speed drives in applications such as: air conditioning, ventilation, water pumping, air compressors, handling robots and machinery for process automation.

Rectifiers and AC-DC and DC-DC converters in general such as: galvanic baths, electrolysis of water for swimming pool treatment, waste water and green hydrogen production.

Product Versions

References	IP	ENGINE POWER		INTENSITY	INDUCTANCE	REACTIVE POWER @50Hz	LOSSES	VOLTAGE
References	IP	(kW)	(CV)	(A)	(mH)	(VAr)	(W)	(V)
ILT002	IP00	0,75	1	2	12,812	48,3	19,8	400	Show details
ILT004	IP00	1,5	2	4	6,406	96,6	33,2	400	Show details
ILT006	IP00	2,2	3	6	4,271	145	43,8	400	Show details
ILT008	IP00	3	4	8	3,203	193	47,1	400	Show details
ILT010	IP00	4	5,5	10	2,562	242	57,5	400	Show details
ILT015	IP00	5,5	7,5	15	1,708	362	78,4	400	Show details
ILT020	IP00	7,5	10	20	1,281	483	76,7	400	Show details
ILT025	IP00	11	15	25	1,025	604	88,7	400	Show details
ILT030	IP00	15	20	30	0,854	724	91	400	Show details
ILT040	IP00	18,5	25	40	0,641	967	109	400	Show details
ILT050	IP00	22	30	50	0,512	1206	130	400	Show details
ILT060	IP00	30	40	60	0,427	1449	132	400	Show details
ILT080	IP00	37	50	80	0,32	1930	160	400	Show details
ILT100	IP00	45	60	100	0,256	2413	181	400	Show details
ILT125	IP00	55	75	125	0,205	3019	211	400	Show details
ILT150	IP00	75	100	150	0,171	3626	254	400	Show details
ILT200	IP00	90	125	200	0,128	4825	365	400	Show details
ILT250	IP00	110	150	250	0,102	6008	407	400	Show details
ILT300	IP00	150	200	300	0,085	7210	442	400	Show details
ILT400	IP00	185	250	400	0,064	9651	598	400	Show details
ILT500	IP00	220	300	500	0,051	12017	638	400	Show details
ILT630	IP00	315	430	630	0,043	14590	654	400	Show details
ILT800	IP00	400	545	800	0,032	19302	910	400	Show details
ILT1000	IP00	530	720	1000	0,026	24504	1090	400	Show details
ILT1200	IP00	630	855	1200	0,022	29858	1276	400	Show details
ILTB002	IP23	0,75	1	2	12,812	48,3	19,8	400	Show details
ILTB004	IP23	1,5	2	4	6,406	96,6	33,2	400	Show details
ILTB006	IP23	2,2	3	6	4,271	145	43,8	400	Show details
ILTB008	IP23	3	4	8	3,203	193	47,1	400	Show details
ILTB010	IP23	4	5,5	10	2,562	242	57,5	400	Show details
ILTB015	IP23	5,5	7,5	15	1,708	362	78,4	400	Show details
ILTB020	IP23	7,5	10	20	1,281	483	76,7	400	Show details
ILTB025	IP23	11	15	25	1,025	604	88,7	400	Show details
ILTB030	IP23	15	20	30	0,854	724	91	400	Show details
ILTB040	IP23	18,5	25	40	0,641	967	109	400	Show details
ILTB050	IP23	22	30	50	0,512	1206	130	400	Show details
ILTB060	IP23	30	40	60	0,427	1449	132	400	Show details
ILTB080	IP23	37	50	80	0,32	1930	160	400	Show details
ILTB100	IP23	45	60	100	0,256	2413	181	400	Show details
ILTB125	IP23	55	75	125	0,205	3019	211	400	Show details
ILTB150	IP23	75	100	150	0,171	3626	254	400	Show details
ILTB200	IP23	90	125	200	0,128	4825	365	400	Show details
ILTB250	IP23	110	150	250	0,102	6008	407	400	Show details
ILTB300	IP23	150	200	300	0,085	7210	442	400	Show details
ILTB400	IP23	185	250	400	0,064	9651	598	400	Show details
ILTB500	IP23	220	300	500	0,051	12017	638	400	Show details
ILTB630	IP23	315	430	630	0,043	14590	654	400	Show details
ILTB800	IP23	400	545	800	0,032	19302	910	400	Show details
ILTB1000	IP23	530	720	1000	0,026	24504	1090	400	Show details
ILTB1200	IP23	630	855	1200	0,022	29858	1276	400	Show details
ILTD002	IP00	0,75	1	2	15,437	58,2	19,8	480	Show details
ILTD003	IP00	1,5	2	3	10,291	87,3	33,2	480	Show details
ILTD005	IP00	2,2	3	5	6,175	146	43,8	480	Show details
ILTD007	IP00	3	4	7	4,411	204	47,1	480	Show details
ILTD008	IP00	4	5,5	8	3,859	233	57,5	480	Show details
ILTD013	IP00	5,5	7,5	13	2,573	410	64,3	480	Show details
ILTD017	IP00	7,5	10	17	1,816	495	68,3	480	Show details
ILTD021	IP00	11	15	21	1,47	611	83,3	480	Show details
ILTD025	IP00	15	20	25	1,235	727	82,8	480	Show details
ILTD033	IP00	18,5	25	33	0,936	961	101	480	Show details
ILTD042	IP00	22	30	42	0,735	1222	130	480	Show details
ILTD050	IP00	30	40	50	0,617	1454	130	480	Show details
ILTD067	IP00	37	50	67	0,461	1950	155	480	Show details
ILTD083	IP00	45	60	83	0,372	2415	184	480	Show details
ILTD104	IP00	55	75	104	0,297	3028	213	480	Show details
ILTD125	IP00	75	100	125	0,247	3637	207	480	Show details
ILTD167	IP00	90	125	167	0,185	4863	365	480	Show details
ILTD208	IP00	110	150	208	0,148	6035	407	480	Show details
ILTD250	IP00	150	200	250	0,123	7245	442	480	Show details
ILTD333	IP00	185	250	333	0,093	9719	598	480	Show details
ILTD417	IP00	220	300	417	0,074	12128	638	480	Show details
ILTD525	IP00	315	430	525	0,059	15326	654	480	Show details
ILTD667	IP00	400	545	667	0,046	19288	910	480	Show details
ILTD833	IP00	530	720	833	0,037	24197	1090	480	Show details
ILTD1000	IP00	630	855	1000	0,031	29217	1160	480	Show details
ILTDB002	IP23	0,75	1	2	15,437	58,2	19,8	480	Show details
ILTDB003	IP23	1,5	2	3	10,291	87,3	33,2	480	Show details
ILTDB005	IP23	2,2	3	5	6,175	146	43,8	480	Show details
ILTDB007	IP23	3	4	7	4,411	204	47,1	480	Show details
ILTDB008	IP23	4	5,5	8	3,859	233	57,5	480	Show details
ILTDB013	IP23	5,5	7,5	13	2,573	410	64,3	480	Show details
ILTDB017	IP23	7,5	10	17	1,816	495	68,3	480	Show details
ILTDB021	IP23	11	15	21	1,47	611	83,3	480	Show details
ILTDB025	IP23	15	20	25	1,235	727	82,8	480	Show details
ILTDB033	IP23	18,5	25	33	0,936	961	101	480	Show details
ILTDB042	IP23	22	30	42	0,735	1222	130	480	Show details
ILTDB050	IP23	30	40	50	0,617	1454	130	480	Show details
ILTDB067	IP23	37	50	67	0,461	1950	155	480	Show details
ILTDB083	IP23	45	60	83	0,372	2415	184	480	Show details
ILTDB104	IP23	55	75	104	0,297	3028	213	480	Show details
ILTDB125	IP23	75	100	125	0,247	3637	207	480	Show details
ILTDB167	IP23	90	125	167	0,185	4863	365	480	Show details
ILTDB208	IP23	110	150	208	0,148	6035	407	480	Show details
ILTDB250	IP23	150	200	250	0,123	7245	442	480	Show details
ILTDB333	IP23	185	250	333	0,093	9719	598	480	Show details
ILTDB417	IP23	220	300	417	0,074	12128	638	480	Show details
ILTDB525	IP23	315	430	525	0,059	15326	654	480	Show details
ILTDB667	IP23	400	545	667	0,046	19288	910	480	Show details
ILTDB833	IP23	530	720	833	0,037	24197	1090	480	Show details
ILTDB1000	IP23	630	855	1000	0,031	29217	1160	480	Show details
ILTG058	IP00	45	60	58	0,765	2425	174	690	Show details
ILTG072	IP00	55	75	72	0,616	3010	200	690	Show details
ILTG087	IP00	75	100	87	0,51	3638	231	690	Show details
ILTG116	IP00	90	125	116	0,383	4857	360	690	Show details
ILTG145	IP00	110	150	145	0,306	6064	405	690	Show details
ILTG174	IP00	150	200	174	0,255	7276	370	690	Show details
ILTG232	IP00	185	250	232	0,191	9689	579	690	Show details
ILTG290	IP00	220	300	290	0,153	12127	583	690	Show details
ILTG365	IP00	315	430	365	0,122	15319	654	690	Show details
ILTG464	IP00	400	545	464	0,096	19480	788	690	Show details
ILTG580	IP00	530	720	580	0,077	24413	1090	690	Show details
ILTG696	IP00	630	855	696	0,064	29219	1139	690	Show details
ILTGB058	IP23	45	60	58	0,765	2425	174	690	Show details
ILTGB072	IP23	55	75	72	0,616	3010	200	690	Show details
ILTGB087	IP23	75	100	87	0,51	3638	231	690	Show details
ILTGB116	IP23	90	125	116	0,383	4857	360	690	Show details
ILTGB145	IP23	110	150	145	0,306	6064	405	690	Show details
ILTGB174	IP23	150	200	174	0,255	7276	370	690	Show details
ILTGB232	IP23	185	250	232	0,191	9689	579	690	Show details
ILTGB290	IP23	220	300	290	0,153	12127	583	690	Show details
ILTGB365	IP23	315	430	365	0,122	15319	654	690	Show details
ILTGB464	IP23	400	545	464	0,096	19480	788	690	Show details
ILTGB580	IP23	530	720	580	0,077	24413	1090	690	Show details
ILTGB696	IP23	630	855	696	0,064	29219	1139	690	Show details

Show more +

Tech sheet complete ILT

* TORYTRANS reserves the right to modify the information in any time and without prior notice. Design, dimensions or weight of the product could be different.
