Single phase (CNE series) and three phase (TET series) transformers with galvanic isolation between primary and secondary and excellent attenuation against electrical disturbances.
 | |
| Power rating | 5 ÷ 50 kVA |
| Input voltage | 230 V (series CNE) 3 x 400 V (series TTE) |
| Output voltage | 230 V (series CNE) 3 x 400 V + N (series TTE) |
| Frequency | 50/60 Hz |
| Ambient temp. | 40 ºC |
| Insulation class | F (155ºC) |
| Protection degree | IP-20 |
| Safety class | Class I |
| Test voltage | 3 kV |
| Marked | CE |
| Standard | IEC/UNE-EN 61558-1 IEC/UNE-EN 60076-11 |
619 KB
* TORYTRANS reserves the right to modify the information in any time
and without prior notice. Design, dimensions or weight of the product could be different. *

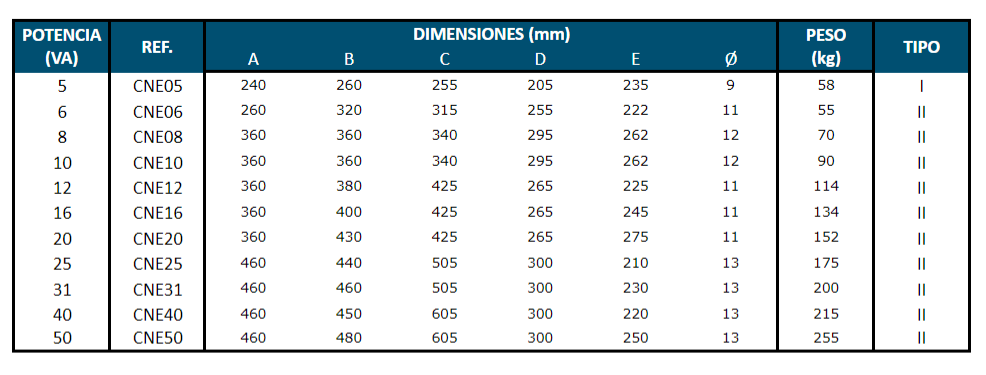

| CNE005 | CNE006 | CNE008 | CNE010 | CNE012 | CNE016 | CNE020 | CNE025 | CNE031 | CNE040 | CNE050 | |
| Request offer | Request | Request | Request | Request | Request | Request | Request | Request | Request | Request | Request |
| Power (VA) | 5000 | 6300 | 8000 | 10000 | 12000 | 16000 | 20000 | 25000 | 31500 | 40000 | 50000 |
| PRI (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| SEC (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| IP | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Phases | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase | Single-phase |
| Use | Isolating | Isolating | Isolating | Isolating | Isolating | Isolating | Isolating | Isolating | Isolating | Isolating | Isolating |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Ambient temperature | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC | 40ºC |
| Thermic class | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) | F (155ºC) |
| Electric shock protection | Classe I | Classe I | Classe I | Classe I | Classe I | Classe I | Classe I | Classe I | Classe I | Classe I | Classe I |
| Test voltage | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV | 3 kV |
| A | 240 | 300 | 350 | 350 | 320 | 320 | 320 | 420 | 420 | 420 | 420 |
| B | 255 | 285 | 310 | 310 | 265 | 255 | 275 | 370 | 390 | 380 | 400 |
| C | 255 | 210 | 270 | 280 | 490 | 575 | 575 | 605 | 605 | 705 | 705 |
| D | 205 | 250 | 295 | 295 | 265 | 265 | 265 | 300 | 300 | 300 | 300 |
| E | 235 | 235 | 262 | 262 | 175 | 165 | 185 | 230 | 250 | 240 | 260 |
| ø | 9 | 9 | 12 | 12 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| Weight (Kg) | 59 | 62 | 70 | 70 | 98 | 115 | 128 | 150 | 172 | 195 | 230 |
| Type | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
