Series TT
Three-phase isolation transformer
Series TT
Three-phase isolation transformer
- Three-phase transformer with galvanic isolation between primary and secondary.
- Protection rating according to installation requirements:

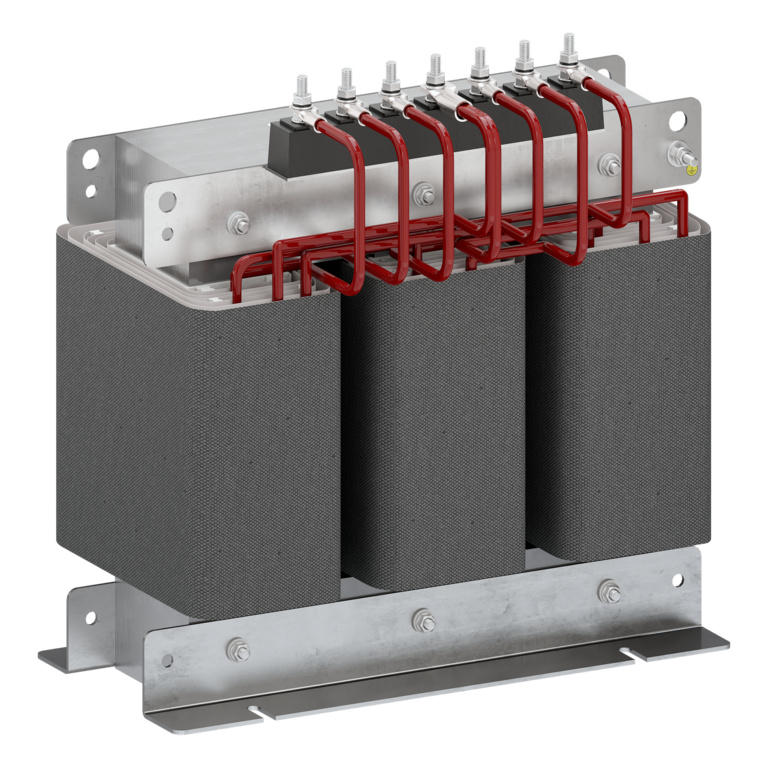

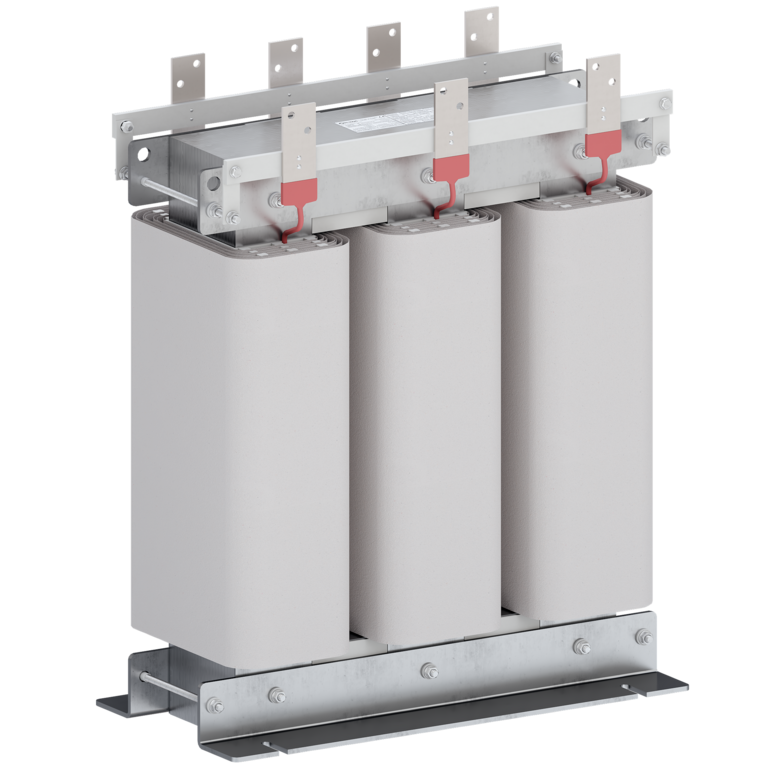

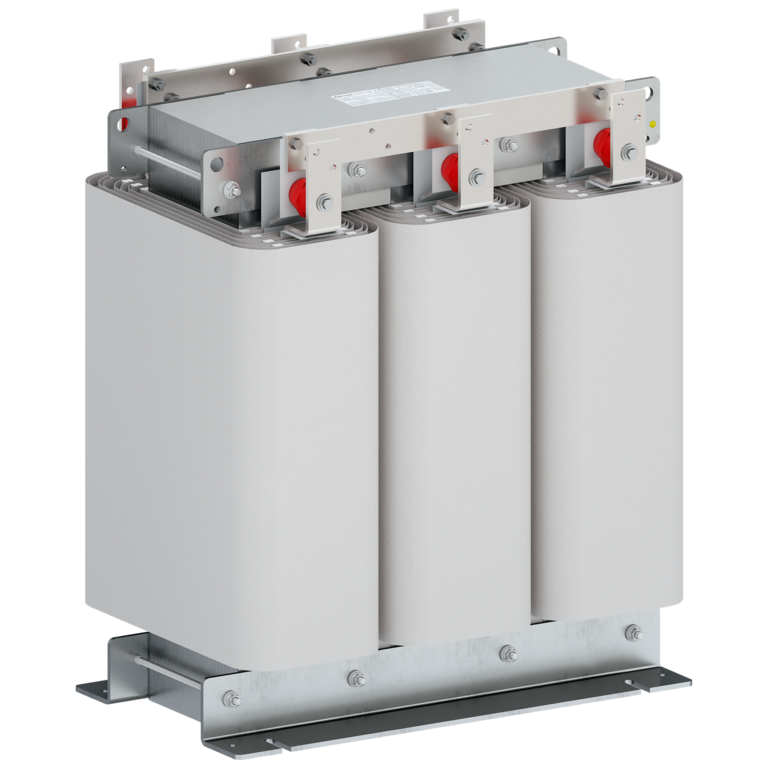

- IP00 without enclosure

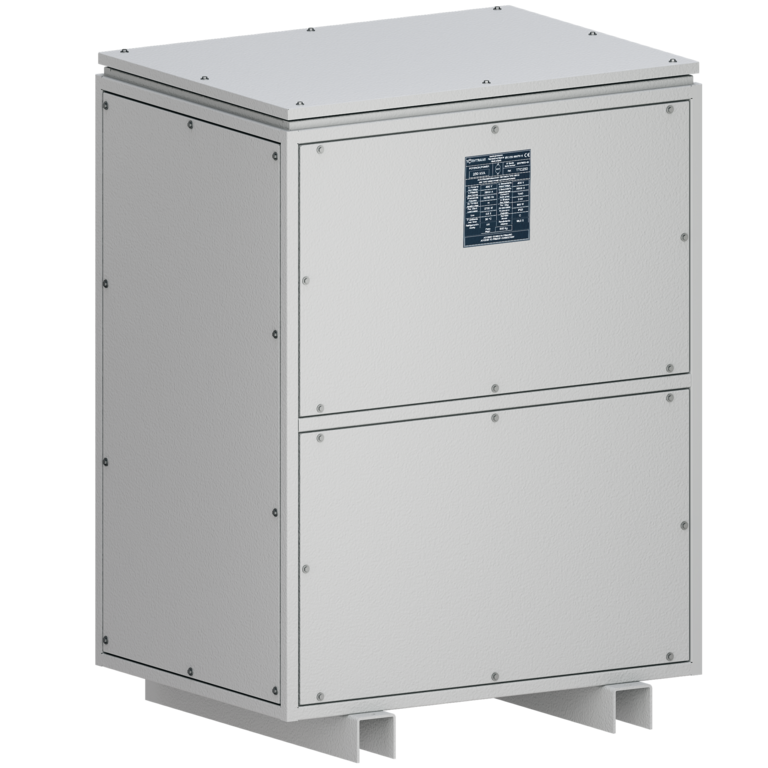

- IP23 enclosure for indoor use

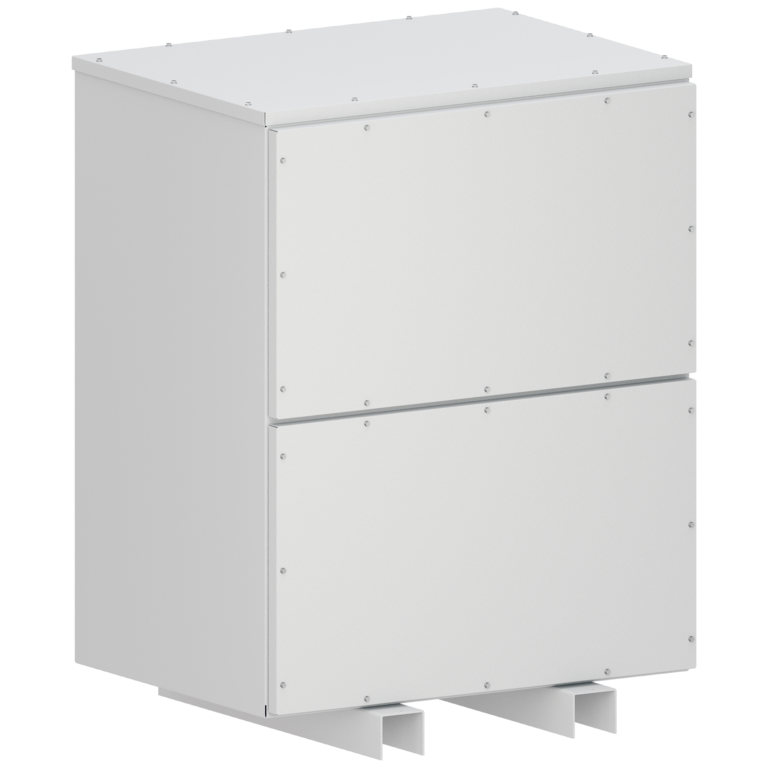

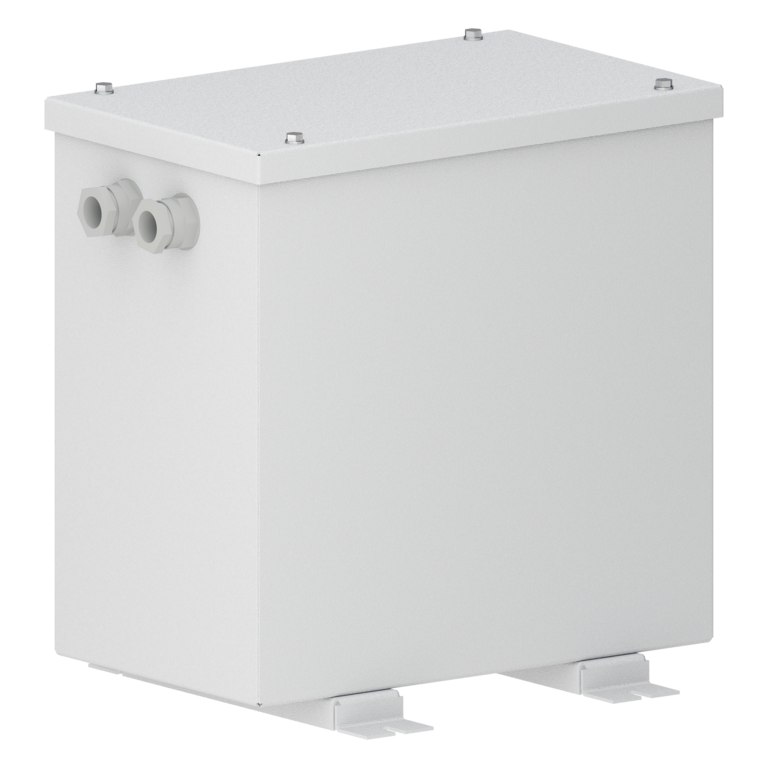

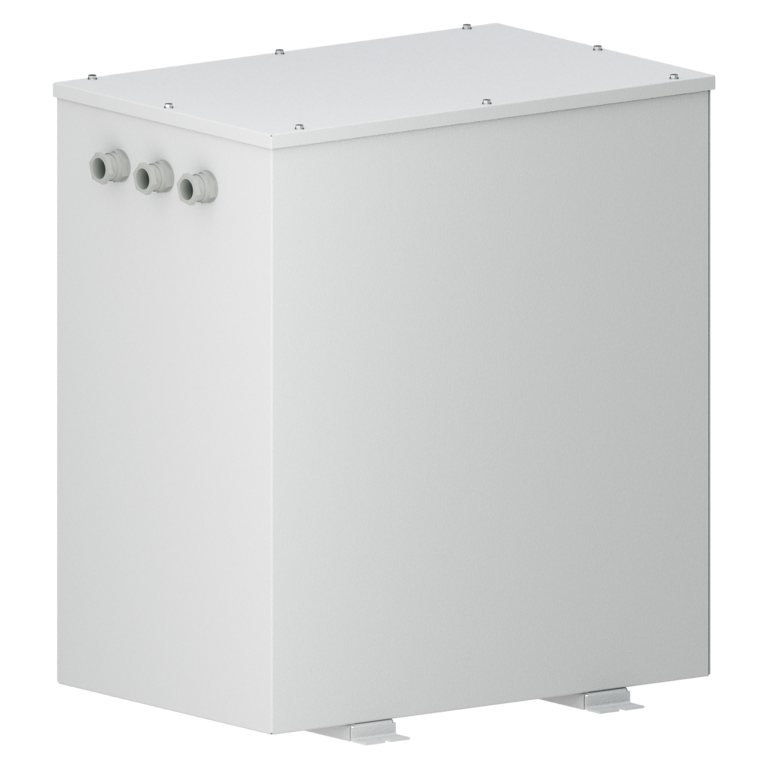

- IP65 enclosure for outdoor use.
Features
- Eliminates the risk of accident in the event of single-pole contact.
- Allows the supply of single-phase loads in networks without neutral, maximum unbalance between phases of 30%.
- Robust and complete varnishing protects against humidity, dust and corrosion.
- IP20 terminal connection protects against direct voltage contact, up to 31kVA in IP00/23 and 25kVA in IP54.
- Optional cURus marking according to UL up to 100kVA for IP00.
Specifications
| Power (kVAr) | 1 ÷ 1000 kVA |
| PRI Voltage (V) | 400 V |
| SEC Voltage (V) |
230 V + N 400 V + N - V + N |
| Frequency | 50/60 Hz |
| Ambient Temperature |
40 ºC 30 ºC - ºC |
| Thermic Class |
F (155 ºC) H (180 ºC) |
| PI |
IP00 IP23 IP65 |
| Electric Shock Protection | Clase I |
| Test Voltage | 3kV |
| Regulations |
IEC/UNE-EN 61558-1 IEC/UNE-EN 60076-11 |
Quality Seals
Uses
For general use as isolation transformer and circuit isolation.
For voltage change as a step-up or step-down to adapt the voltage between mains and equipment.
Protection of equipment sensitive to electrical disturbances in telecommunications centres, data centres, backup and computer servers.
Generation of our isolated IT or neutral-to-earth TN-S and TN-C systems to prevent unwanted tripping of earth leakage circuit breakers.
Product Versions
| References | IP | POWER (kVA) | INTENSITY (A) | Ucc (%) | PERFORMANCE η (%) | ||
|---|---|---|---|---|---|---|---|
| Primary | Secondary | ||||||
| TTS001 | IP00 | 1 | 1.445 | 1.445 | 6 | 89.5 | Show details |
| TTS002 | IP00 | 2 | 2.89 | 2.89 | 8.1 | 89 | Show details |
| TTS003 | IP00 | 3 | 4.335 | 4.335 | 5.6 | 93.2 | Show details |
| TTS004 | IP00 | 4 | 5.78 | 5.78 | 7.2 | 92.1 | Show details |
| TTS005 | IP00 | 5 | 7.225 | 7.225 | 4.1 | 94.8 | Show details |
| TTS006 | IP00 | 6 | 8.671 | 8.671 | 4.5 | 95.2 | Show details |
| TTS008 | IP00 | 8 | 11.561 | 11.561 | 4.3 | 94.8 | Show details |
| TTS010 | IP00 | 10 | 14.451 | 14.451 | 4.2 | 95 | Show details |
| TTS012 | IP00 | 12 | 17.341 | 17.341 | 4 | 95.1 | Show details |
| TTS016 | IP00 | 16 | 23.121 | 23.121 | 3.9 | 95.2 | Show details |
| TTS020 | IP00 | 20 | 28.902 | 28.902 | 2.7 | 96.4 | Show details |
| TTS025 | IP00 | 25 | 36.127 | 36.127 | 3.1 | 96.1 | Show details |
| TTS031 | IP00 | 31 | 44.798 | 44.798 | 2.5 | 96.9 | Show details |
| TTS040 | IP00 | 40 | 57.803 | 57.803 | 2.5 | 96.6 | Show details |
| TTS050 | IP00 | 50 | 72.254 | 72.254 | 2.4 | 96.8 | Show details |
| TTS063 | IP00 | 63 | 91.04 | 91.04 | 3.4 | 96.2 | Show details |
| TTS080 | IP00 | 80 | 115.607 | 115.607 | 3 | 96.6 | Show details |
| TTS100 | IP00 | 100 | 144.509 | 144.509 | 2.5 | 97 | Show details |
| TTS125 | IP00 | 125 | 180.636 | 180.636 | 2.2 | 97.3 | Show details |
| TTS160 | IP00 | 160 | 231.214 | 231.214 | 2.1 | 97.5 | Show details |
| TTS200 | IP00 | 200 | 289.017 | 289.017 | 1.8 | 97.9 | Show details |
| TTS250 | IP00 | 250 | 361.272 | 361.272 | 1.6 | 98.1 | Show details |
| TTS315 | IP00 | 315 | 455.202 | 455.202 | 1.5 | 98.3 | Show details |
| TTS400 | IP00 | 400 | 578.035 | 578.035 | 1.6 | 98.6 | Show details |
| TTC001 | IP23 | 1 | 1.445 | 1.445 | 6 | 89.5 | Show details |
| TTC002 | IP23 | 2 | 2.89 | 2.89 | 8.1 | 89 | Show details |
| TTC003 | IP23 | 3 | 4.335 | 4.335 | 5.6 | 93.2 | Show details |
| TTC004 | IP23 | 4 | 5.78 | 5.78 | 7.2 | 92.1 | Show details |
| TTC005 | IP23 | 5 | 7.225 | 7.225 | 4.1 | 94.8 | Show details |
| TTC006 | IP23 | 6 | 8.671 | 8.671 | 4.5 | 95.2 | Show details |
| TTC008 | IP23 | 8 | 11.561 | 11.561 | 4.3 | 94.8 | Show details |
| TTC010 | IP23 | 10 | 14.451 | 14.451 | 4.2 | 95 | Show details |
| TTC012 | IP23 | 12 | 17.341 | 17.341 | 4 | 95.1 | Show details |
| TTC016 | IP23 | 16 | 23.121 | 23.121 | 3.9 | 95.2 | Show details |
| TTC020 | IP23 | 20 | 28.902 | 28.902 | 2.7 | 96.4 | Show details |
| TTC025 | IP23 | 25 | 36.127 | 36.127 | 3.1 | 96.1 | Show details |
| TTC031 | IP23 | 31 | 44.798 | 44.798 | 2.5 | 96.9 | Show details |
| TTC040 | IP23 | 40 | 57.803 | 57.803 | 2.5 | 96.6 | Show details |
| TTC100 | IP23 | 100 | 144.509 | 144.509 | 2.5 | 97 | Show details |
| TTC125 | IP23 | 125 | 180.636 | 180.636 | 2.2 | 97.3 | Show details |
| TTC250 | IP23 | 250 | 361.272 | 361.272 | 1.6 | 98.1 | Show details |
| TTC315 | IP23 | 315 | 455.202 | 455.202 | 1.5 | 98.3 | Show details |
| TTP001 | IP65 | 1 | 1.445 | 1.445 | 6 | 89.5 | Show details |
| TTP002 | IP65 | 2 | 2.89 | 2.89 | 8.1 | 89 | Show details |
| TTP003 | IP65 | 3 | 4.335 | 4.335 | 5.6 | 93.2 | Show details |
| TTP004 | IP65 | 4 | 5.78 | 5.78 | 7.2 | 92.1 | Show details |
| TTP005 | IP65 | 5 | 7.225 | 7.225 | 4.1 | 94.8 | Show details |
| TTP006 | IP65 | 6 | 8.671 | 8.671 | 4.5 | 95.2 | Show details |
| TTP008 | IP65 | 8 | 11.561 | 11.561 | 4.3 | 94.8 | Show details |
| TTP010 | IP65 | 10 | 14.451 | 14.451 | 4.2 | 95 | Show details |
| TTP012 | IP65 | 12 | 17.341 | 17.341 | 4 | 95.1 | Show details |
| TTP016 | IP65 | 16 | 23.121 | 23.121 | 3.9 | 95.2 | Show details |
| TTP020 | IP65 | 20 | 28.902 | 28.902 | 2.7 | 96.4 | Show details |
| TTP025 | IP65 | 25 | 36.127 | 36.127 | 3.1 | 96.1 | Show details |
| TTP031 | IP65 | 31 | 44.798 | 44.798 | 2.5 | 96.9 | Show details |
| TTP040 | IP65 | 40 | 57.803 | 57.803 | 2.5 | 96.6 | Show details |
| TTP050 | IP65 | 50 | 72.254 | 72.254 | 2.4 | 96.8 | Show details |
| TTP063 | IP65 | 63 | 91.04 | 91.04 | 3.4 | 96.2 | Show details |
| TTP080 | IP65 | 80 | 115.607 | 115.607 | 3 | 96.6 | Show details |
| TTP100 | IP65 | 100 | 144.509 | 144.509 | 2.5 | 97 | Show details |
| TTP125 | IP65 | 125 | 180.636 | 180.636 | 2.2 | 97.3 | Show details |
| TTP160 | IP65 | 160 | 231.214 | 231.214 | 2.1 | 97.5 | Show details |
| TTP200 | IP65 | 200 | 289.017 | 289.017 | 1.8 | 97.9 | Show details |
| TTP250 | IP65 | 250 | 361.272 | 361.272 | 1.6 | 98.1 | Show details |
| TTP315 | IP65 | 315 | 455.202 | 455.202 | 1.5 | 98.3 | Show details |
| TTP400 | IP65 | 400 | 578.035 | 578.035 | 1.6 | 98.6 | Show details |
Show more +
* TORYTRANS reserves the right to modify the information in any time and
without prior notice. Design, dimensions or weight of the product could be
different.
