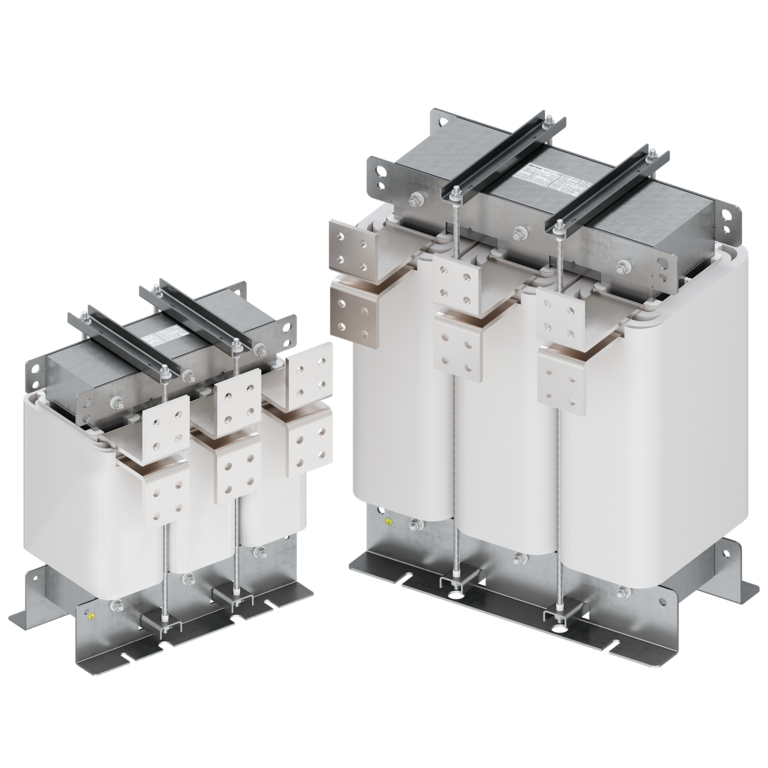

Three-phase inductance for sine LCL output filter - Main and secondary inductances
Three-phase inductance for sine LCL output filter - Main and secondary inductances
Description
Independent primary and secondary chokes for converter output LCL filter. They attenuate PWM switching harmonics by restoring the sine wave and at the same time eliminate the problems associated with high dV/dt.
Electrical features
| Nominal voltage | |
| Nominal current | LV 400 ÷ 1100 V / MV: 3.6 ÷ 17.5 kV |
| Inductance | 100 ÷ 5000 Arms |
| Inductance tolerance | 1 ÷ 900μH / 1 ÷ 900mH |
| Linearity inductance | ±5% / ±10% depending on the application |
| Nominal frequency | 1.5 ÷ 5 x In without saturation |
| Switching frequency | DC / AC 25 ÷ 400Hz |
| Current harmonics | 2 ÷ 10kHz Magnetic steel / >10 ÷ 50kHz Ferrite core |
