Three-phase distribution choke for double converter and with integrated dV/dt filter
Three-phase distribution choke for double converter and with integrated dV/dt filter
Description

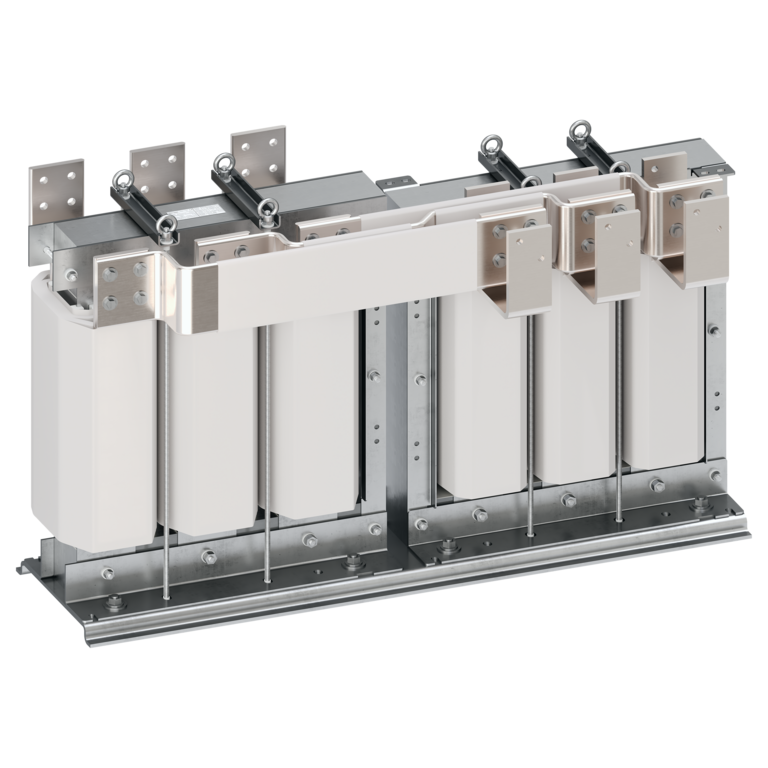

The distribution choke couples two converters in a back-to-back topology, which allows bidirectional power control in the converters. In addition, it coasts at the output of a filter inductance dV/dt common to both converters.
Electrical features
| Nominal voltage | |
| Nominal current | LV 400 ÷ 1100 V / MV: 3.6 ÷ 17.5 kV |
| Inductance | 100 ÷ 5000 Arms |
| Inductance tolerance | 1 ÷ 900μH / 1 ÷ 900mH |
| Linearity inductance | ±5% / ±10% depending on the application |
| Nominal frequency | 1.5 ÷ 5 x In without saturation |
| Switching frequency | DC / AC 25 ÷ 400Hz |
| Current harmonics | 2 ÷ 10kHz Magnetic steel / >10 ÷ 50kHz Ferrite core |
