Three-phase auto-transformer artificial neutral generator

Protection rating according to installation requirements:

IP00 without enclosure

IP23 enclosure for indoor use

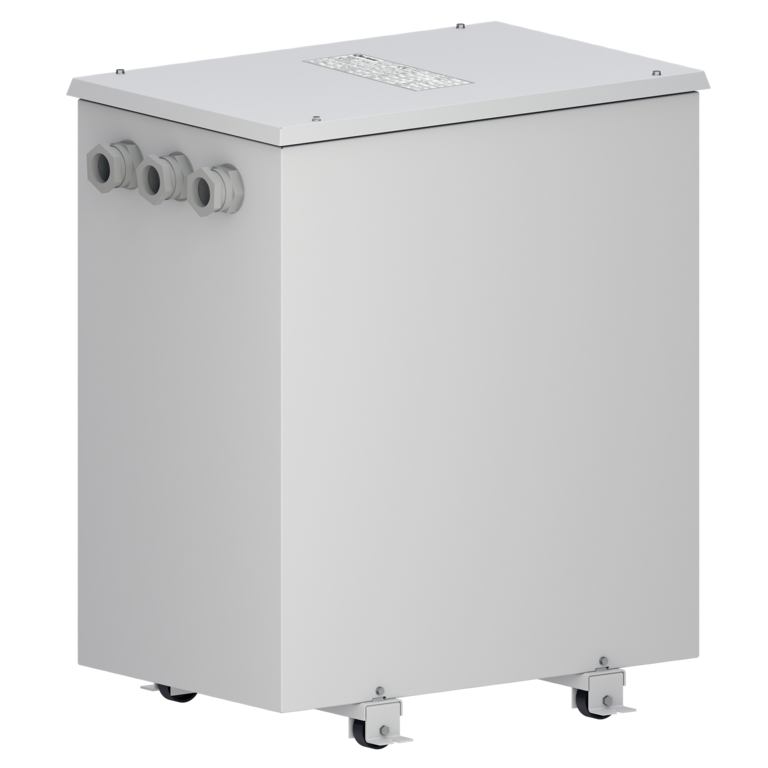

IP65 enclosure for outdoor use.

Request a quote

Features

The most economical and efficient device for adapting a different voltage between the mains and the equipment.
It allows the supply of single-phase loads in networks without neutral, with a maximum unbalance between phases of 10%.
Robust and complete varnishing protects against humidity, dust and corrosion.
IP20 terminal connection protects against direct voltage contact, up to 31kVA in IP00/23 and 25kVA in IP54.
Optional cURus marking according to UL up to 100kVA for IP00.

Specifications

Power (kVAr)	3 ÷ 100 kVA
PRI Voltage (V)	3 x 400 V
SEC Voltage (V)	3 x 400 V + N
Frequency	50/60 Hz
Ambient Temperature	40 ºC (IP00) 30 ºC (IP23) 30 ºC (IP65)
Thermic Class	F (155 ºC)
PI	IP00 IP23 IP65
Electric Shock Protection	Clase I
Test Voltage	3kV
Connection	ZN0
Regulations	IEC/UNE-EN 61558-1 IEC/UNE-EN 61558-2-13

Quality Seals

Marcado CE

UK-CA

Uses

As a booster or reducer adapting the voltage between the electrical network of the country where an industrial machine manufactured in a country of origin with a different voltage is installed.

To increase the voltage in long-distance power transmission to reduce resistance losses in the conductors.

Optionally, voltage changes with regulating sockets to compensate for the voltage drop in the cables of the installation.

Product Versions

References	IP	TOTAL POWER III (kVA)	LOAD POWER II (kVA)	INTENSITY (A)
ATNS003	IP00	3	1	4.335	Show details
ATNS005	IP00	5	1.6	7.225	Show details
ATNS008	IP00	8	2.6	11.561	Show details
ATNS010	IP00	10	3.3	14.451	Show details
ATNS012	IP00	12	4	17.341	Show details
ATNS016	IP00	16	5.3	23.121	Show details
ATNS020	IP00	20	6.6	28.902	Show details
ATNS025	IP00	25	8.3	36.127	Show details
ATNS031	IP00	31	10.3	44.798	Show details
ATNS040	IP00	40	13.3	57.803	Show details
ATNS050	IP00	50	16.6	72.254	Show details
ATNS063	IP00	63	21	91.04	Show details
ATNS080	IP00	80	26.6	115.607	Show details
ATNS100	IP00	100	33.3	144.509	Show details
ATNC003	IP23	3	1	4.335	Show details
ATNC005	IP23	5	1.6	7.225	Show details
ATNC008	IP23	8	2.6	11.561	Show details
ATNC010	IP23	10	3.3	14.451	Show details
ATNC012	IP23	12	4	17.341	Show details
ATNC016	IP23	16	5.3	23.121	Show details
ATNC020	IP23	20	6.6	28.902	Show details
ATNC025	IP23	25	8.3	36.127	Show details
ATNC031	IP23	31	10.3	44.798	Show details
ATNC040	IP23	40	13.3	57.803	Show details
ATNC050	IP23	50	16.6	72.254	Show details
ATNC063	IP23	63	21	91.04	Show details
ATNC080	IP23	80	26.6	115.607	Show details
ATNC100	IP23	100	33.3	144.509	Show details
ATNP003	IP65	3	1	4.335	Show details
ATNP005	IP65	5	1.6	7.225	Show details
ATNP008	IP65	8	2.6	11.561	Show details
ATNP010	IP65	10	3.3	14.451	Show details
ATNP012	IP65	12	4	17.341	Show details
ATNP016	IP65	16	5.3	23.121	Show details
ATNP020	IP65	20	6.6	28.902	Show details
ATNP025	IP65	25	8.3	36.127	Show details
ATNP031	IP65	31	10.3	44.798	Show details
ATNP040	IP65	40	13.3	57.803	Show details
ATNP050	IP65	50	16.6	72.254	Show details
ATNP063	IP65	63	21	91.04	Show details
ATNP080	IP65	80	26.6	115.607	Show details
ATNP100	IP65	100	33.3	144.509	Show details

Show more +

Tech sheet complete ATN
