Series CPE
Single-phase swimming pool transformer (IP20)
Series CPE
Single-phase swimming pool transformer (IP20)
Single-phase safety transformer with galvanic isolation between primary and secondary for supplying halogen spotlights in swimming pools, fountains, gardens, saunas, etc.
The windings are completely protected against knocks, dirt, pollution and humidity. Prepared for installation in adverse environments.
Class I (CPExx1): With electrostatic screen between primary and secondary.
Class II (CPRxx0): Double insulation between primary and secondary.
Features
- Enclosure made of self-extinguishing V0 technical polyamide, halogen- and phosphor-free, prevents the user from accessing hazardous contact parts.
- Connection with screw clamp and pre-inserted pressure washer.
- Tap regulation on the primary to correct the voltage drop between the transformer and the spotlight, depending on the distance.
- Core coated with anti-rust protection.
- Protection of the connection terminals to avoid the risk of accident due to direct contact.
Specifications
| Power (VA) | 100, 300 y 600 VA |
| PRI Voltage (V) | 230 V |
| SEC Voltage (V) | 12 V |
| Frequency | 50/60 Hz |
| Ambient Temperature | 40 ºC |
| Thermic Class | F (155 ºC) |
| PI | IP20 |
| Electric Shock Protection | Clase II |
| Test Voltage | 4kV |
| Regulations |
IEC/UNE-EN 61558-1 IEC/UNE-EN 61558-2-2 |
Quality Seals
Uses
Designed for powering submersible halogen spotlights in swimming pools and fountains.
Power supply for surface halogen spotlights in gardens, saunas and wet rooms where installation regulations require a 12V safety voltage.
Product Versions
| References | Type | POWER (VA) | INTENSITY (A) | ||
|---|---|---|---|---|---|
| Primary | Secondary | ||||
| CPE101 | Clase I | 100 | 0.435 | 8.333 | Show details |
| CPEN301 | Clase I | 300 | 1.304 | 25 | Show details |
| CPE601 | Clase I | 600 | 2.609 | 50 | Show details |

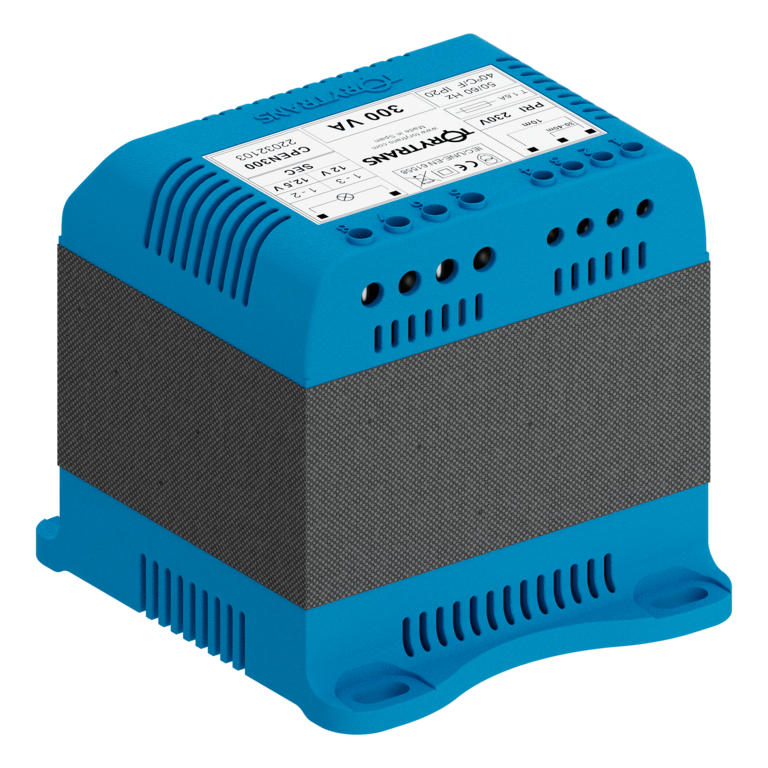

| CPEN300 | Clase II | 300 | 1.304 | 25 | Show details |
| CPE100 | Clase II | 100 | 0.435 | 8.333 | Show details |
| CPE600 | Clase II | 600 | 2.609 | 50 | Show details |
